|ø80MM SPINDLE BORE (ML Series)

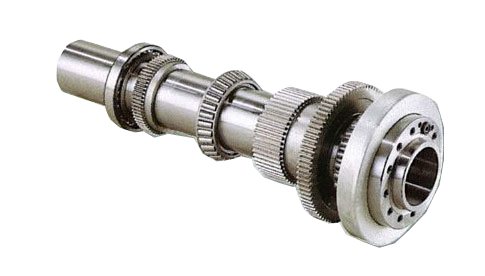

||HEAVY DUTY SPINDLE
- Proven design on same models but with big spindle bore (80 mm) offering you more efficient, durable operation.
- Spindle is made from forged alloy steel, hardened, ground & heat treated for dynamical balance.
- The spindle is supported at three points by high precision taper roller and ball bearings keeping rigidity and accuracy.
- R/H or L/H wheel available onup request.

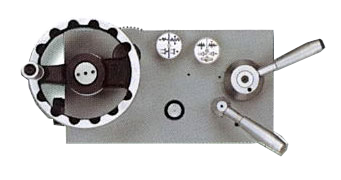

- Integrated automatic control for longitudinal,cross, forward and reverse feed.

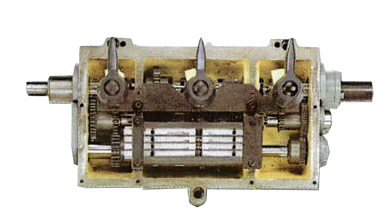

Universal Gear box allows inch or metric dial. Turing M.P., D.P. threads without ger change.

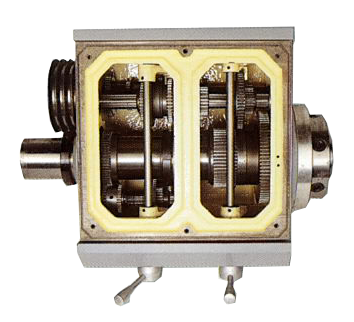

- Housing is vibration resistance, deflection-free.
- Gears are harened & MAAG or REISHAUER ground.

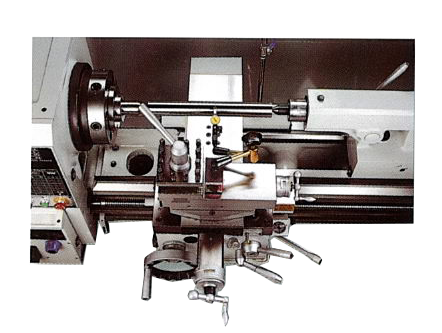

|| CARRIAGE & SLIDE
- Anti-Float design backlash eliminator fitted in cross slide nut.
- Safety clutch at feed shaft.
- One shot lubrication in carriage & top slide.
- Dual dials supply inch system screw.
- Metric dial supply metric system only.
- Nylon safety gears in end train.
- Shear pin in leadscrew.
- E.V.S models with auto lubrication system for headstock. External tank is for oi cooling.
- All models are one piececast iron constructed.
- All models are with universal feed gearbox & reversable apron.
- All models comply with CE.(on request)
- All models' spindle bore is 80mm (3.149")
- Spindle type:ASA D1-6
- All models' cross slide are handened and ground, prolonging machine life time.
- 3-jaw chuck
- (9" for RML/CL; 10" for ML)
- Stready rest
- Full length splash guard
- Halogen working light
- Coolant system
- Back plate for chuck
- Dead center
- Spindle center sleeve
- Level pads x 6 pcs
- Tool set and box
- Operation manual & parts list
- EVS system
(Electrical variable speed system)
- 4-jaw chuck
(9" for RML / CL; 10" for ML)
- 5C collet closer attachment
- Driving plate with dog 10"
- Chuck safety guard
- Electrical system for CE
- Protect cover on lead screw
- Tool post safety guard
- Taper turning attachment
- Face plate 12"
- Drill chuck & arbor 1/2"
- Rotating center MT# 4
- Quick change toll post
- Carriage micro stop set
- Digital read out system
- Follow rest
